SFM-1-4

Appearance

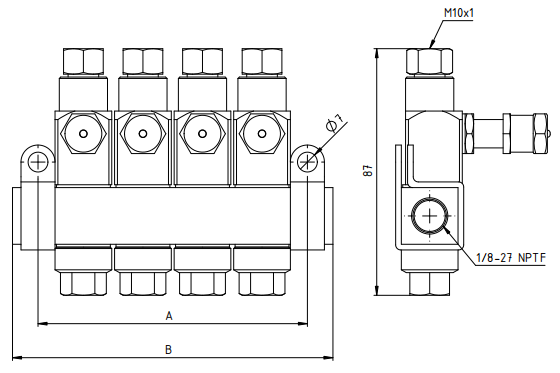

Dimension

Products Specifications

  • Qty of outlet: 4
  • Inlet: 1/8-27 NPTF
  • Outlet: M10X1
  • A (mm): 95
  • B (mm): 113

Description

Product Description

The SFM-1 series grease injectors are used in single-line, high pressure centralized lubrication systems. It can accommodate lubricants with viscosity of up to NLGI 2.The grease injector can be easily disassembled for inspection or replacement. The injector is solid and reliable, and can be widely used in wind energy, automatic machinery and general machinery, etc.

Product Features

1.The number of outlets for a single-line injector can be chosen from 1 to 6.

2.Adjust the grease flow of each outlet by rotating the adjustment screw.

3.Integrated visual indicator to monitor the working status of each point.

4.The single injector is easy to disassemble and replace.
