The LUBElite™ Centralized Lubrication System is a sophisticated modular solution designed for complex industrial environments. It operates on a progressive distribution principle, delivering lubricants from a central pump to multiple lubrication points with high precision, even under extreme temperature fluctuations.
1. System Composition
The system is built with a modular approach, ensuring ease of installation, commissioning, and maintenance. Its core components include:
- LUBElite 21 Series Electric Lubrication Pump
- IB Series Pump Elements
- PF Series Progressive Distributors
- SV Series Safety Valves
- Integrated Control System & High-Pressure Fittings
2. Working Principle
The LUBElite™ system utilizes high-pressure delivery and metered intermittent operation. By moving lubricant through a series of progressive distributors, the system ensures that each connected point receives a fixed, predetermined volume of oil or grease. This "progressive" nature means the system is reliable and easily monitored—if one line is blocked, the pressure buildup can be detected immediately at the central controller.

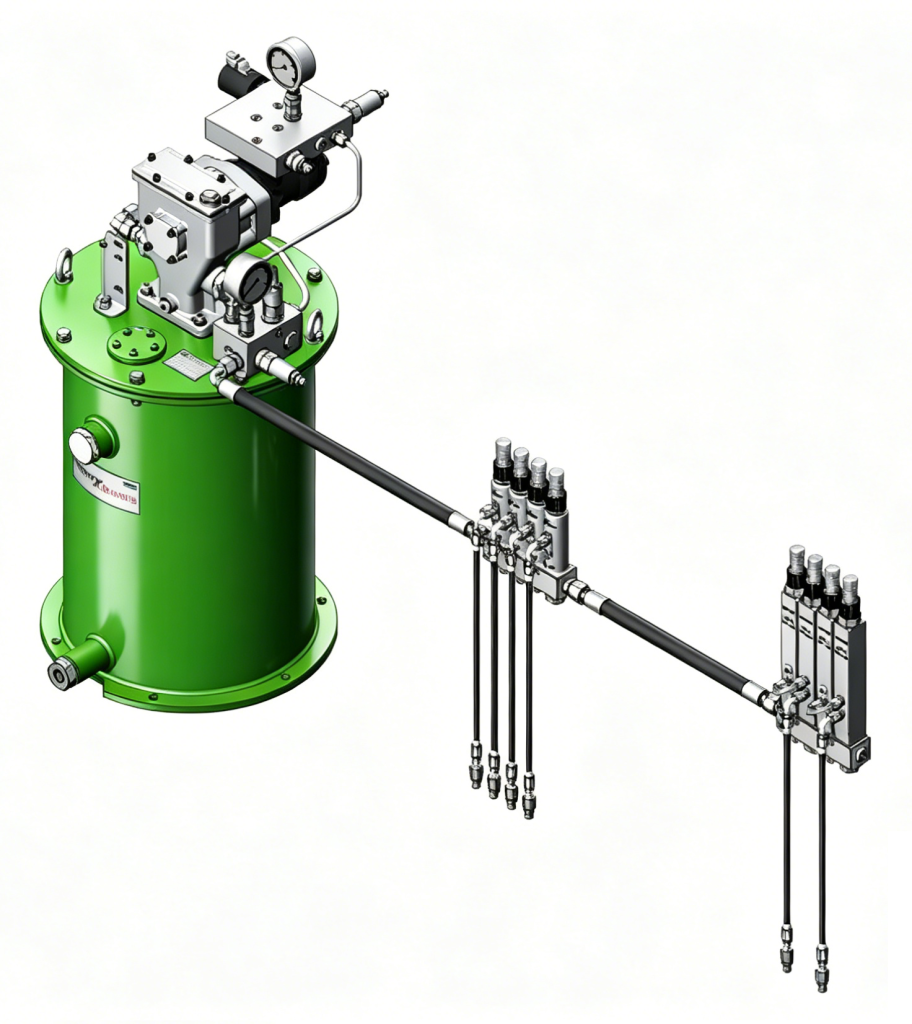

3. System Components Diagram (Legend)
Based on the modular architecture, the system is divided into eight key functional parts:
| No. | Component Name (EN) | Description |
| ① | Lubrication Pump | The central power unit (LUBElite 21 series). |
| ② | Pump Element | IB series core responsible for high-pressure delivery. |
| ③ | Safety Valve | SV series valve to protect the system from overpressure. |
| ④ | Main Line | The primary conduit connecting the pump to the first stage. |
| ⑤ | Primary Distributor | Main PF series unit that splits flow to secondary lines. |
| ⑥ | Secondary Line | Lines connecting primary and secondary distributors. |
| ⑦ | Secondary Distributor | Final stage distribution units (PF series). |
| ⑧ | Lubrication Point Line | The terminal lines delivering lubricant to specific machine parts. |
4. Key Features
- Modular Design: Simplifies system expansion and part replacement.
- Wide Temperature Range: Engineered to perform consistently in diverse working conditions.
- Precise Metering: Guaranteed fixed-volume delivery for every cycle, minimizing lubricant waste.
- High Reliability: High-pressure pumping ensures even the most distant lubrication points are reached.
